Impact Snow Sled (IP8002) Replacement Parts
IMPACT Implements IP8002 Snow Sled Replacement Parts

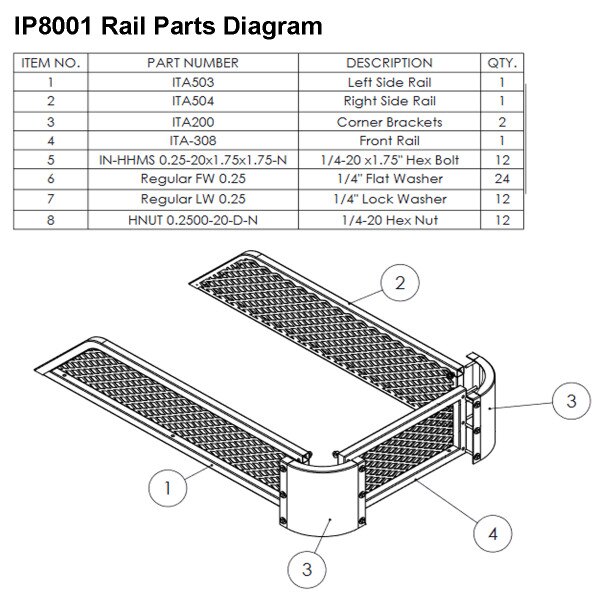

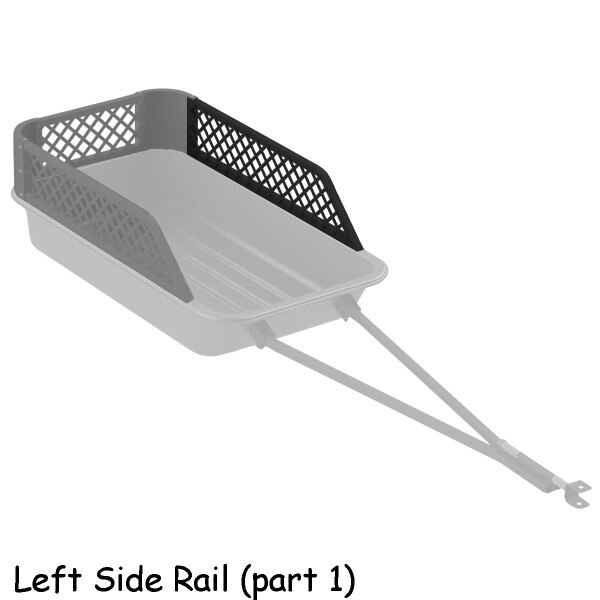

Left Side Rail (part 1) :
• #1 - Left Side Rail ITA503 (qty 1)

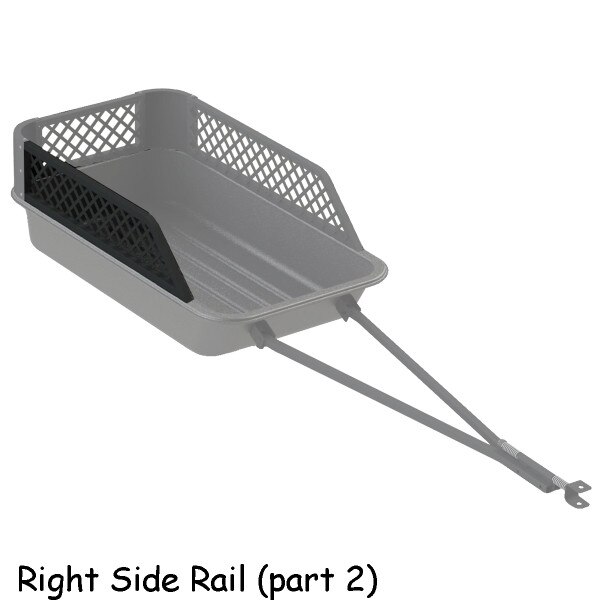

Right Side Rail (part 2) :
• #2 - Right Side Rail ITA504 (qty 1)

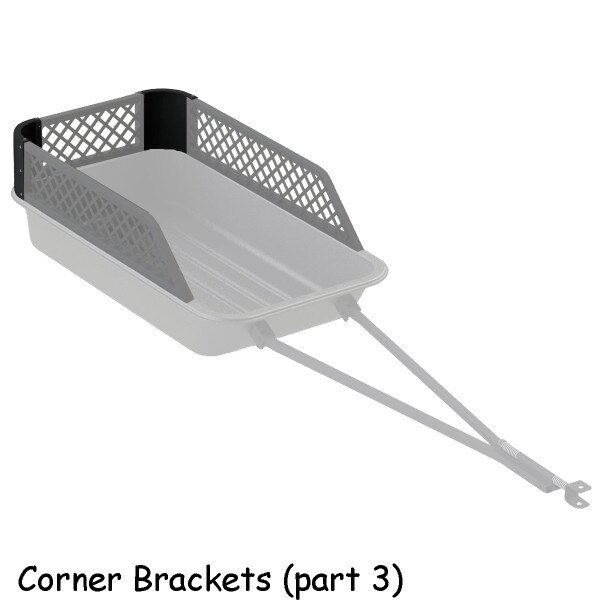

Corner Brackets (part 3) :
• #3 - Corner Brackets ITA200 (qty 2)

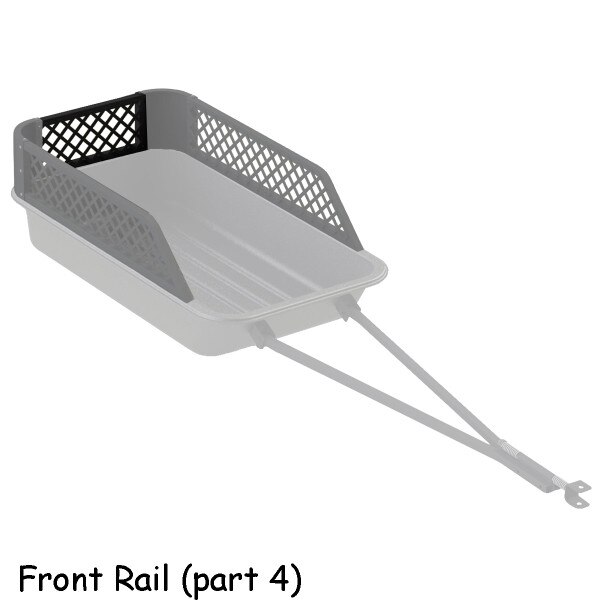

Front Rail (part 4) :
• #4 - Front Rail ITA308 (qty 1)
Rail Hardware Pack (parts 5,6,7,8) :
• #5 - 1/4-20 x 1.75" Hex Bolt (qty 12)
• #6 - 1/4" Flat Washer (qty 24)
• #7 - 1/4" Lock Washer (qty 12)
• #8 - 1/4-20 Hex Nut (qty 12)
