Denali Pro UTV Snow Plow

(0) No Reviews yet
SKU: CFG_ProPlow

Click the question mark ? by the mount plate drop down list to see complete fitment.

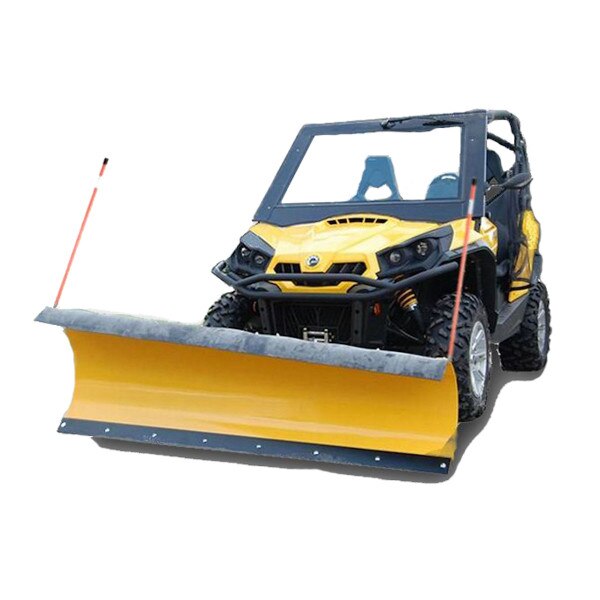

DENALI PRO Series UTV Snow Plows by MotoAlliance are custom designed in the USA to turn your UTV into a snow throwing beast! The DENALI PRO style blade is tapered on the end to not only move snow, but to throw it out of the path like a full size DOT truck. With three custom colors the DENALI PRO Series also comes complete with rubber flap system so snow does flow over the top of the blade and side markers to easily spot the edge of your blade.

The quick connect design allows you to attach and detach your plow in seconds, and the frame plow mount disperses the force of impact to the sturdiest part of the UTV, preventing damage to the front end or other vehicle parts from sudden impact. The mount plate is also specifically engineered to fit the frame of your UTV and can remain on your vehicle year-round.

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER MIDNIGHT & V2 winches as well as our optional DENALI plow pulley system to extend the life of your winch rope.

Kit Contents:

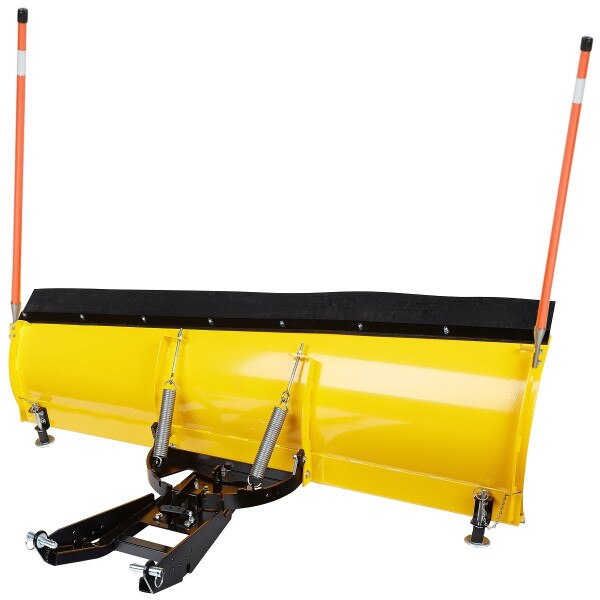

- DENALI UTV PRO 72" Snow Plow Tapered Blade in BLACK, RED, or YELLOW
- DENALI Pushtubes
- DENALI Plow Mount custom fit for your UTV
- One (1) Reversible DENALI Wearbar
- DENALI Rubber Flap & Stabilizer Bar
- DENALI Skid Feet

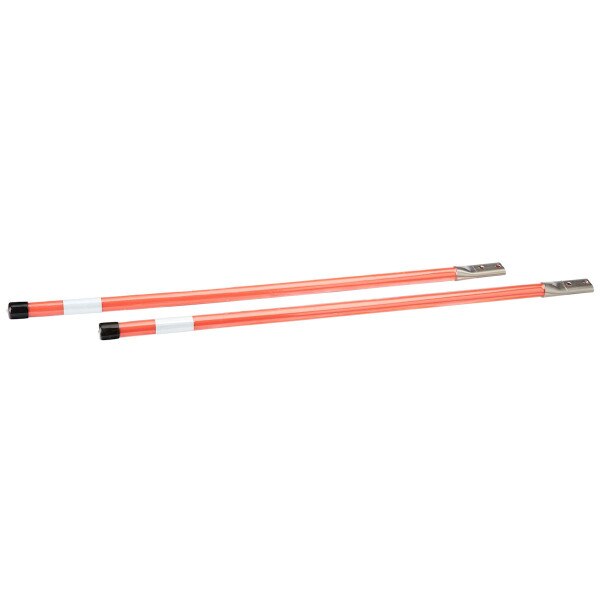

- DENALI Plow Markers
- Installation Hardware and Instructions

DENALI PRO BLADE Specs/Features:
- DENALI PRO style blade cuts wet snow & throws powder; made of heavy-duty 12-gauge steel
- Angled Blade : 16 on the low side; 23 on the high side
- Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
- Premium powder coat in custom colors for long-lasting durability
- High strength, high yield 3/16 thick Grade 50 steel wear bar
- Rubber flap & stabilizer bar with rubber flap

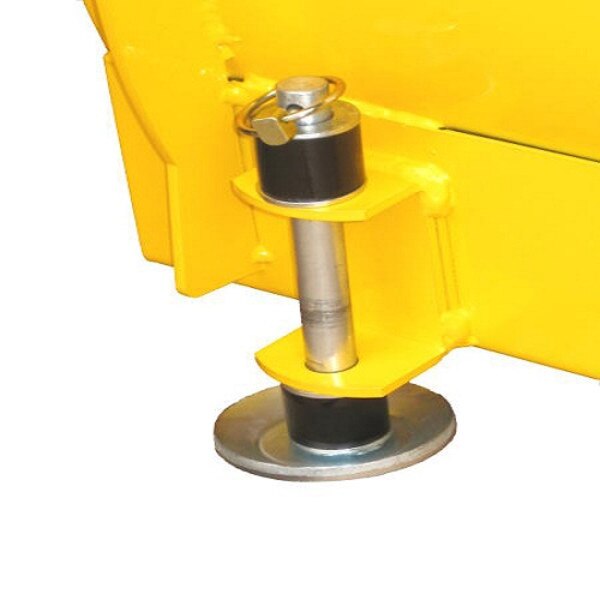

- Height AND angle adjustable steel skid feet

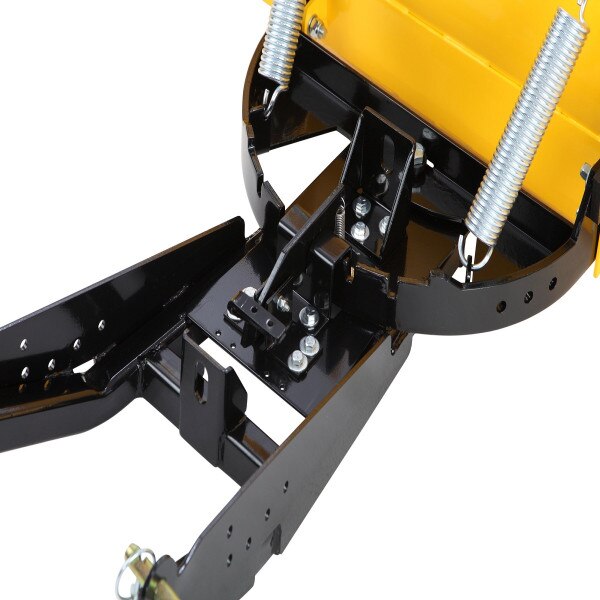

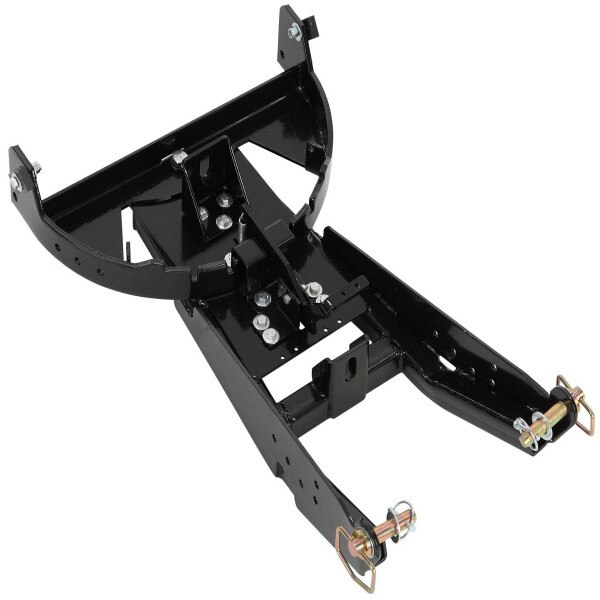

DENALI Pushtube Specs/Features:

  • Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength

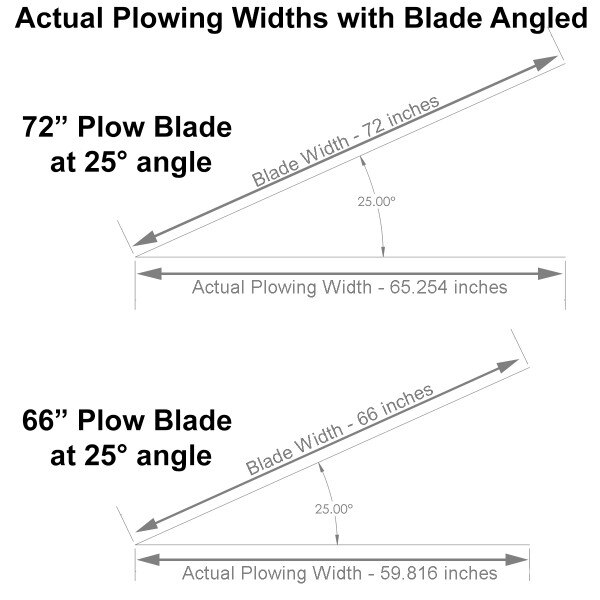

  • Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
  • Simple detachment system with the pull of a pin
  • Structural tube steel cross bar for added lateral rigidity
  • Quick release pins included
  • 13.5 inches center to center for plow mount tabs
  • Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

DENALI Pushtube Lift Kits:

  • Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
  • Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)

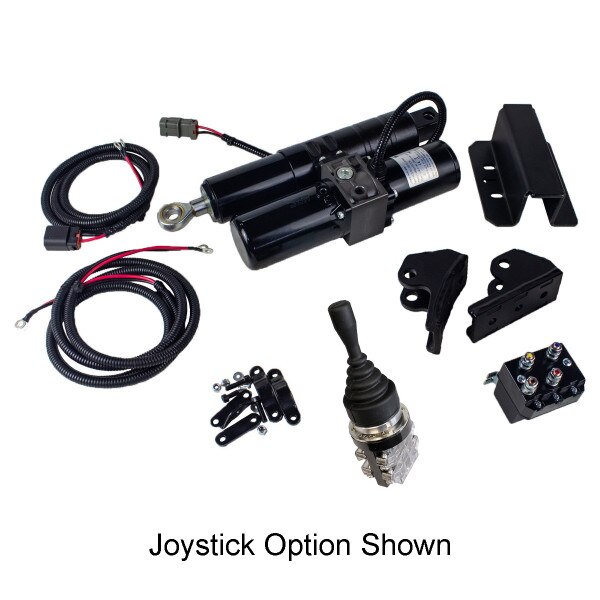

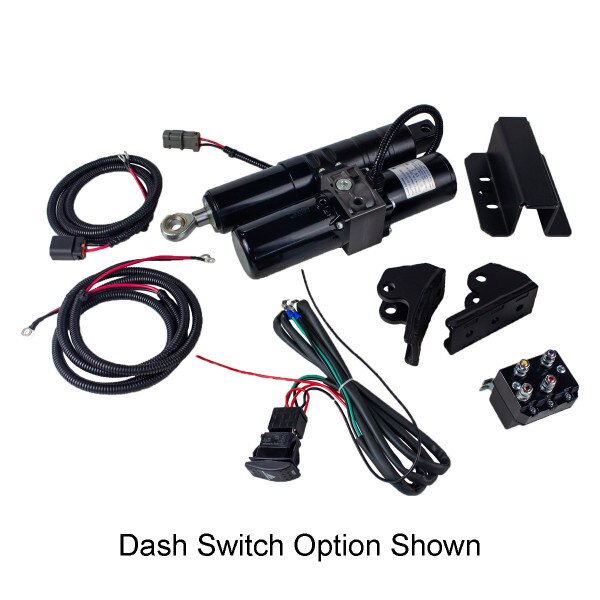

Optional Hydroturn Features:

  • Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
  • Change the blade angle while driving; full radius turn in just 15 seconds
  • Heavy duty chrome plated ¾″ cylinder shaft
  • No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
  • Wire harness utilizes weatherproof connectors

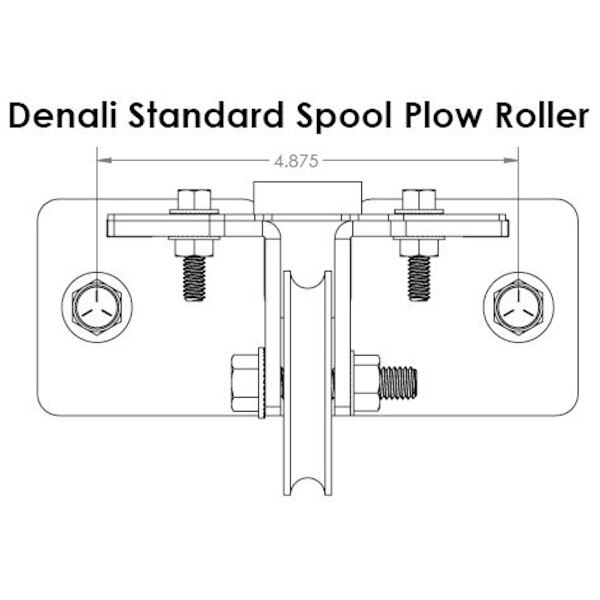

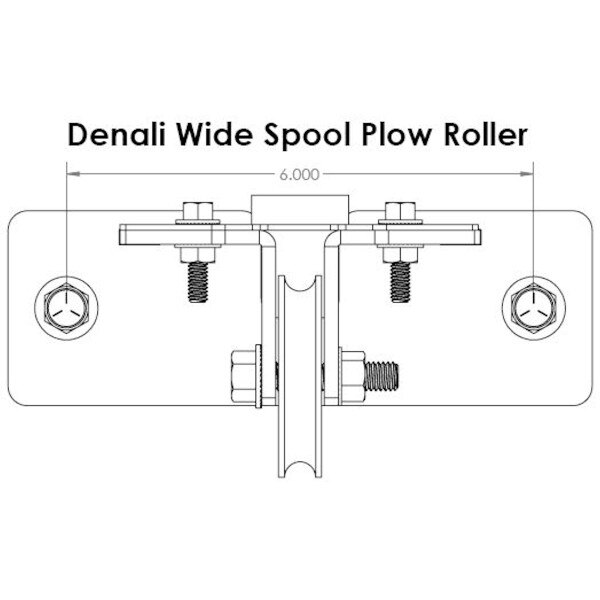

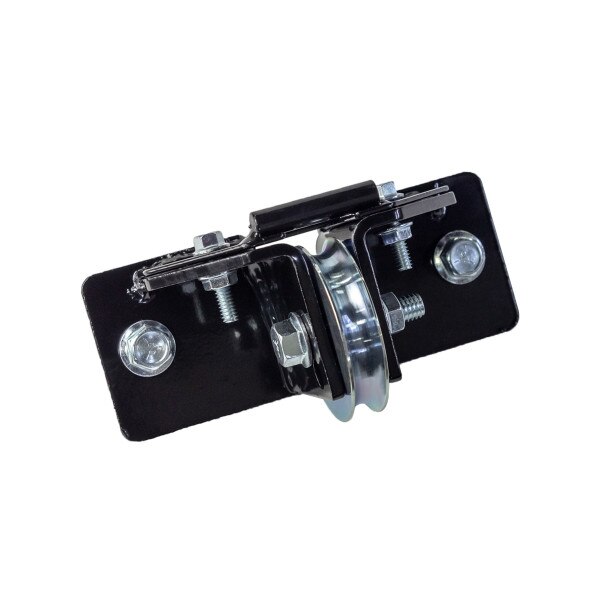

Optional Plow Pulley Fairlead Features:

  • Roller
    • Replaces the winch fairlead during the plow season for significantly extending the life of your plow cable
    • For use with Steel AND Synthetic cables
    • Curved cable groove helps eliminate flattening and breaking of cable
  • Sheave
    • Includes pulley, 1/4″ clevis hook and nylon strap
    • Allows greater precision when raising/lowering plow blade and increases the angle of pull
  • Cable
    • 12′ length, 1/4″ diameter
    • Single braid, dyneema rope with galvanized steel thimble/eyelet

2015-2023 Honda Pioneer 500
2021-2023 Honda Pioneer 520

2014-2023 Honda Pioneer 700
2014-2023 Honda Pioneer 700-4

2016-2022 Honda Pioneer 1000

Note: Note: will NOT work with a WARN winch mount
Note: Note: a small amount of trimming to the side tabs is required when using a KFI Winch mount
