Impact Trailer (IP8001) Replacement Parts

(0) No Reviews yet
SKU: CFG_RPL_IP8001

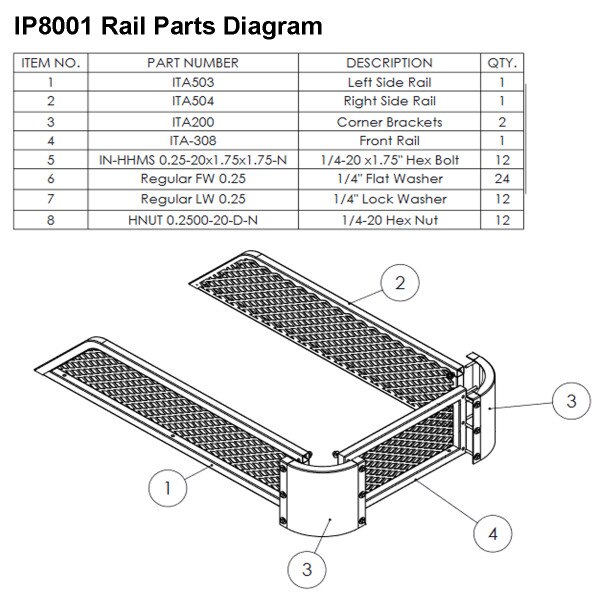

IMPACT Implements IP8001 Trailer Replacement Parts

Left Side Rail (part 1) :
• #1 - Left Side Rail ITA503 (qty 1)

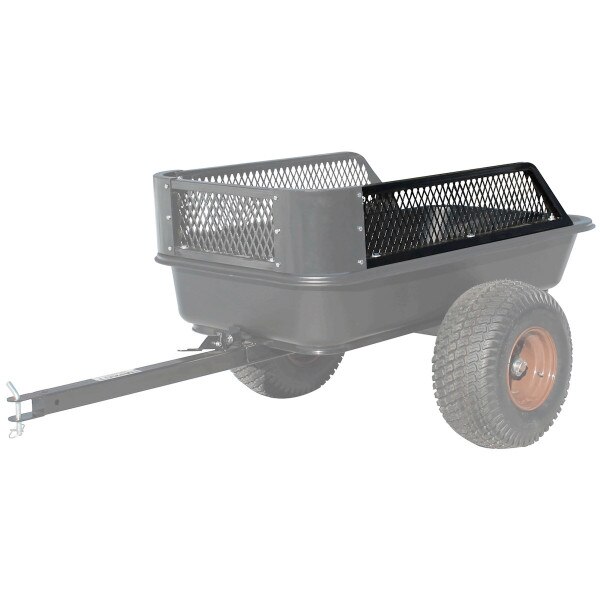

Right Side Rail (part 2) :
• #2 - Right Side Rail ITA504 (qty 1)

Corner Brackets (part 3) :
• #3 - Corner Brackets ITA200 (qty 2)

Front Rail (part 4) :
• #4 - Front Rail ITA308 (qty 1)

Latch Assembly (parts 1, 2, 3, 4, 5, 6, 7, 8, 9) :
• #1 - Latch Base Flange ITA100 (qty 1)
• #2 - Latch Trip Pin ITA101 (qty 1)
• #3 - Latch Spring ITA102 (qty 1)
• #4 - Latch Trip Handle ITA103 (qty 1)
• #5 - Latch Trip Plate ITA104 (qty 1)
• #6 - 1/4-20x 1.25" Hex Bolt (qty 1)
• #7 - Regular LW 0.25 (qty 1)
• #8 - HNUT 0.2500-20-D-N (qty 1)

Rail Hardware Pack (parts 5,6,7,8) :
• #5 - 1/4-20 x 1.75" Hex Bolt (qty 12)
• #6 - 1/4" Flat Washer (qty 24)
• #7 - 1/4" Lock Washer (qty 12)
• #8 - 1/4-20 Hex Nut (qty 12)
