Viper UTV Winch - Elite Wide Spool
Click the question mark ? by the drop down list to see complete fitment.
Check out a NEW GENERATION of VIPER, the new VIPER V2 Wide Spool Winch
VIPER Elite Wide Spool winches have been completely redesigned.

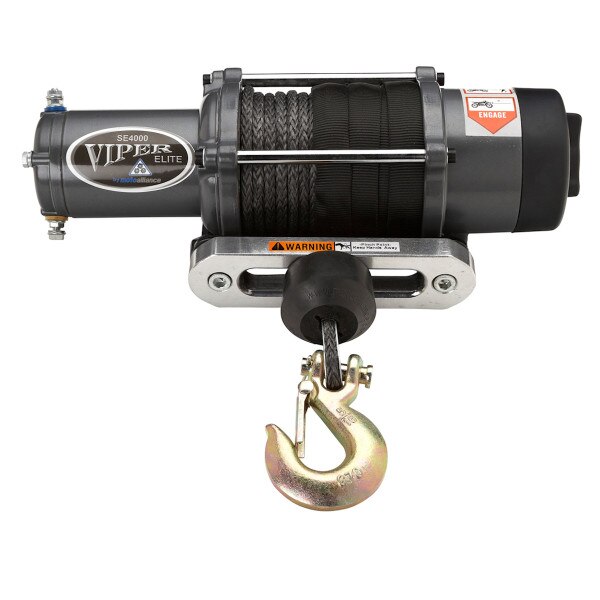

Viper Elite Wide Spool UTV Winch - the Absolute TOP OF THE LINE UTV Winch!
The VIPER Elite Wide Spool UTV Winch is a durable winch for UTVs and Side by Sides. VIPER Elite wide spool winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with UTV and Side by Sides. The VIPER Elite Wide Spool has a sealed planetary metal gear train, a permanent magnet motor, automatic brake, and stainless-steel hardware. Flush mount dash switch, wireless remote switch and AmSteel®-Blue synthetic rope are standard on this Elite winch.
Features:
Kit Contents:
Specs
Scratch & Dent Winch Mounts:
Scratch & dent mount plates are for sale, available for a discounted price. They include the mount plate & installation instructions with a full hardware list. Hardware is not guaranteed to be included.
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the UTV.
Please Note: both ends of cables are eyelets
Optional Extended Service Plan
VIPER Elite wide spool UTV winches are eligible for a two (2) year, extended service plan, where all maintenance and repairs are covered no questions asked Simply send in your winch and we will take care of it from there! Plan details include:
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.
Check out a NEW GENERATION of VIPER, the new VIPER V2 Wide Spool Winch
VIPER Elite Wide Spool winches have been completely redesigned.
Viper Elite Wide Spool UTV Winch - the Absolute TOP OF THE LINE UTV Winch!
The VIPER Elite Wide Spool UTV Winch is a durable winch for UTVs and Side by Sides. VIPER Elite wide spool winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with UTV and Side by Sides. The VIPER Elite Wide Spool has a sealed planetary metal gear train, a permanent magnet motor, automatic brake, and stainless-steel hardware. Flush mount dash switch, wireless remote switch and AmSteel®-Blue synthetic rope are standard on this Elite winch.
Features:
- • IP67 Waterproof Rating
- • Wireless Remote System with unique frequency
- • Flush Mount Dash Switch
- • Planetary metal gear train and permanent magnet motor
- • Automatic brake
- • ″Whisper″ quiet greasing system
- • Limited Lifetime Warranty (winch) / Rope (1 year)

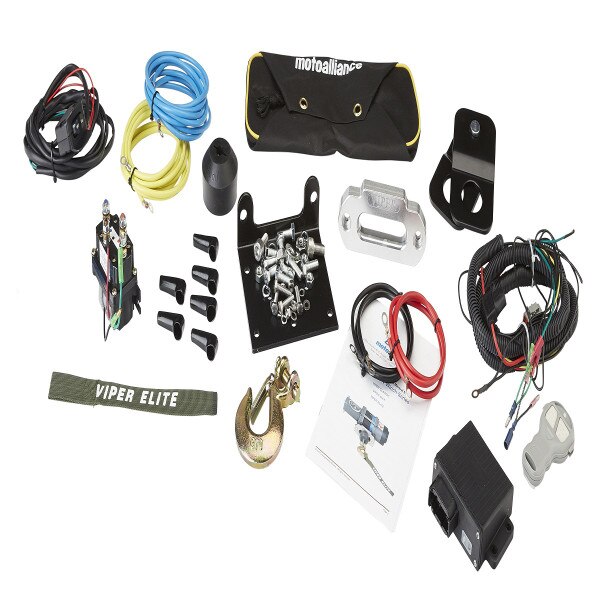

Kit Contents:
- • 60′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (1 year warranty)

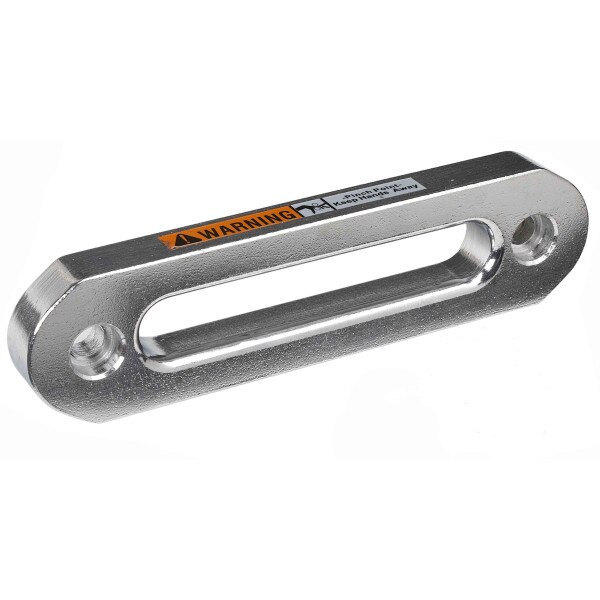

- • Aluminum Hawse Fairlead

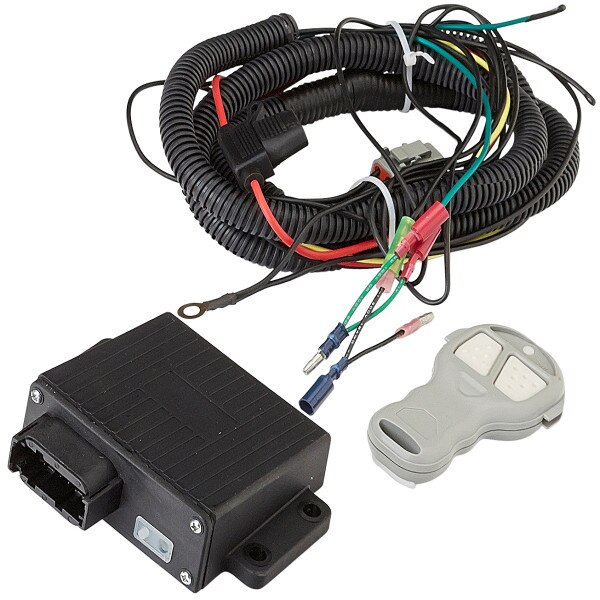

- • Wireless Remote Switch (weather resistant)

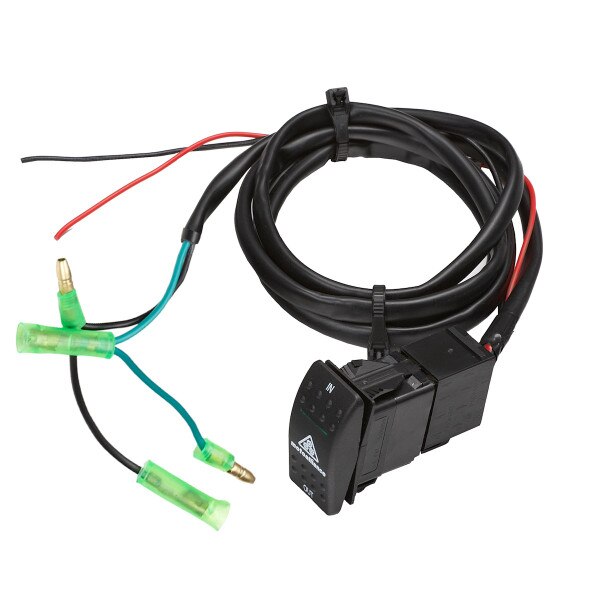

- • Flush Mount Dash Switch
- • Contactor & Wiring
- • 4T Snatch Block
- • Clevis Hook
- • Rubber Line Stopper
- • Waterproof Winch Cover
- • Hand Saver Strap
- • Installation Hardware and Instructions
Specs
- • Cable - AmSteel®-Blue Synthetic, 8,600lb max load rating

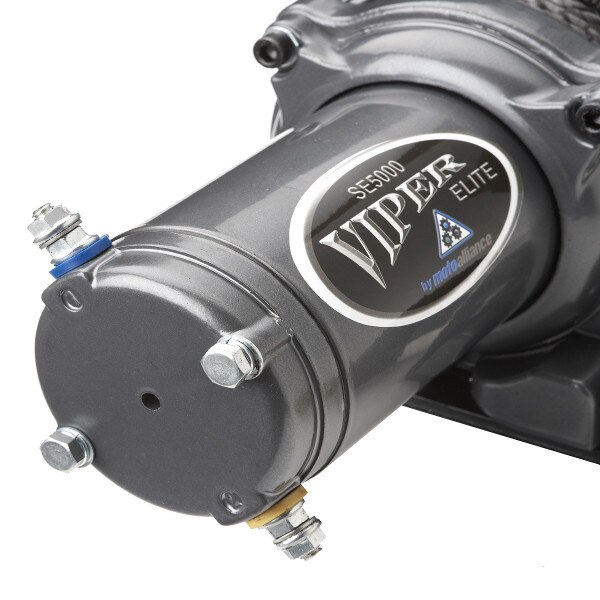

- • Motor - 12V DC, Sealed permanent magnet
- • Gearing / Gear Ratio - 3-Stage planetary/136:1
- • Brake - Automatic, 100% load holding

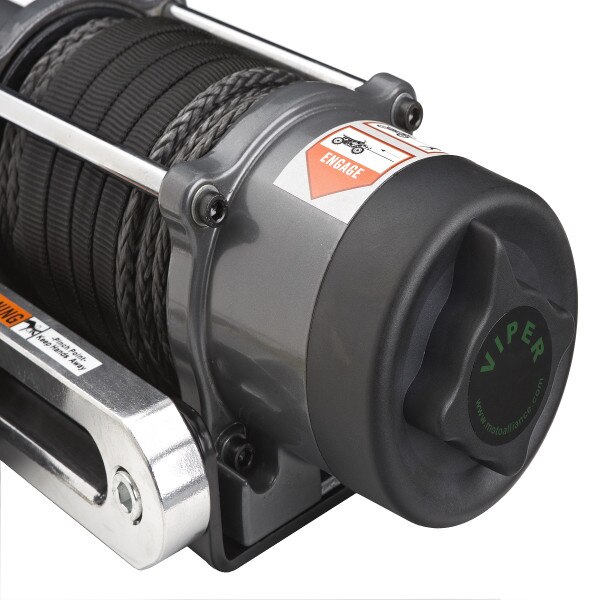

- • Clutch - Cam Activated
- • Wiring - 5 gauge (English) – 126/.4 (Metric)
- • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- • Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
- • Dimensions:
- • Elite 4000 - 15 x 4 1/2 x 4 5/8 inches
- • Elite 4500 - 15 x 4 1/2 x 4 5/8 inches
- • Elite 5000 - 15 x 4 1/2 x 4 5/8 inches
- • Elite 6000 - 15 x 4 1/2 x 4 3/4 inches
Scratch & Dent Winch Mounts:
Scratch & dent mount plates are for sale, available for a discounted price. They include the mount plate & installation instructions with a full hardware list. Hardware is not guaranteed to be included.
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the UTV.
Please Note: both ends of cables are eyelets
Optional Extended Service Plan
VIPER Elite wide spool UTV winches are eligible for a two (2) year, extended service plan, where all maintenance and repairs are covered no questions asked Simply send in your winch and we will take care of it from there! Plan details include:
- • All repair and service up to the full replacement value of the winch - no questions asked
- • Coverage is for every part of the winch, including cables and fairleads
- • Receive a 25% off voucher at the end of two (2) years for the use on a new winch or any MotoAlliance product
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.
