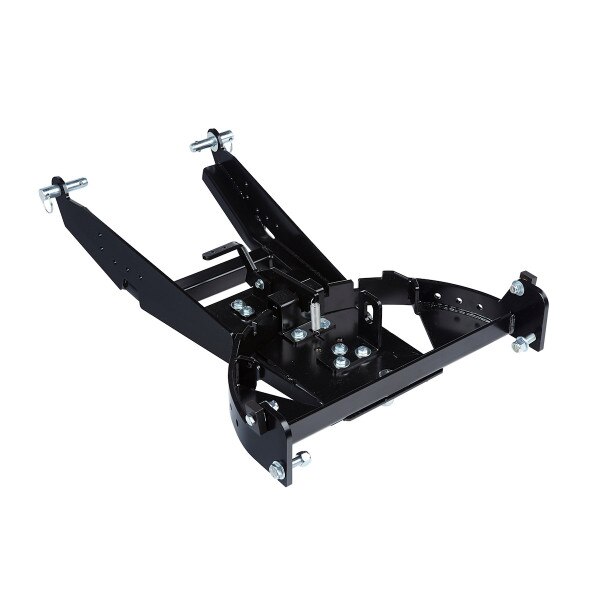

Denali UTV Plow Pushtubes Replacement Parts
Details
DENALI Pushtube Replacement Parts - UTV Standard and Pro Series Plow
Please Note: work only with DENALI Standard and Pro Series plows. They do NOT work with the DENALI Universal 72 Plow

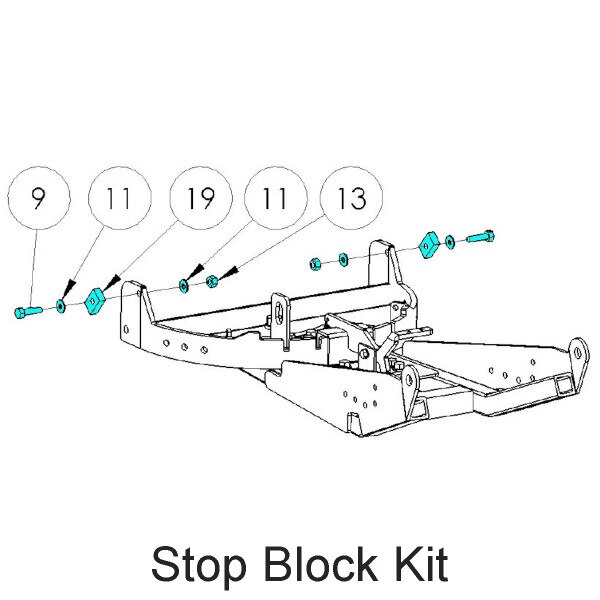

Stop Block Kit
• # 9 - 3/8″ x 1.5″ Hex Bolts (qty 2)
• #11 - 3/8″ Flat Washer (qty 4)
• #13 - 3/8″ Nylock Nut (qty 2)
• #19 - Stop Block (qty 2)

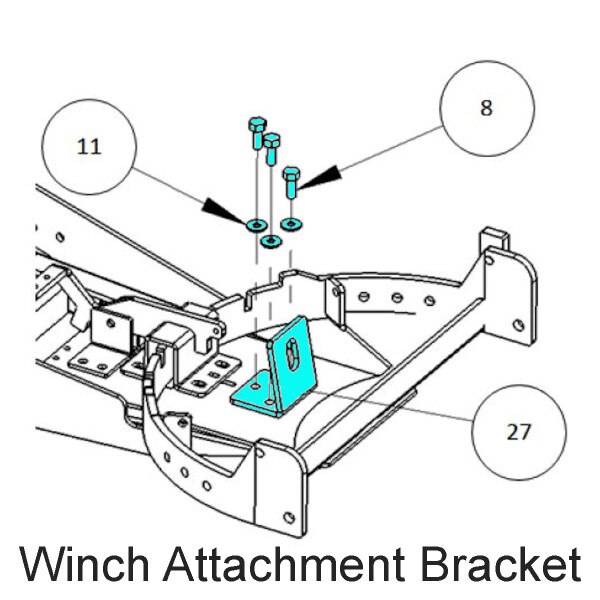

Winch Attachment Bracket
• # 8 - 3/8"-16 x 1" Hex Head Bolts (qty 3)
• #11 - 3/8" Flat Washers (qty 3)
• #27 - Winch Attachment Bracket (qty 1)

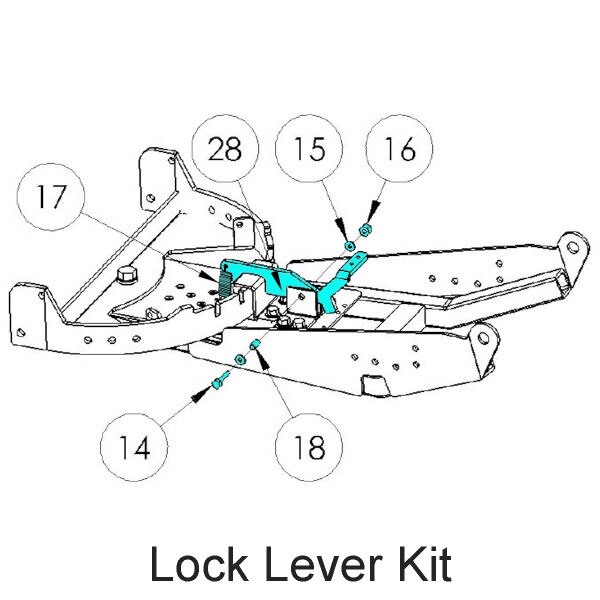

Lock Lever Kit
• #14 - 1/4" x 1.5" Hex Bolt (qty 1)
• #15 - 1/4” Flat Washer (qty 2)
• #16 - 1/4" Nylock Nut (qty 1)
• #17 - Retention Spring (qty 1)
• #18 - Aluminum Spacer (qty 1)
• #28 - Pivot Lock Lever (qty 1)

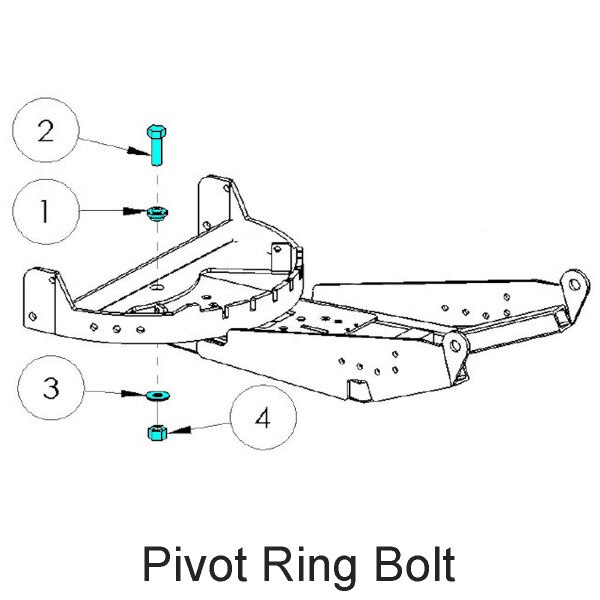

Pivot Ring Bolt
• #1 - Pivot Ring (qty 1)
• #2 - 5/8″ x 2″ Hex Bolt (qty 1)
• #3 - 5/8” Flat Washer (qty 1)
• #4 - 5/8” Nylock Nut (qty 1)

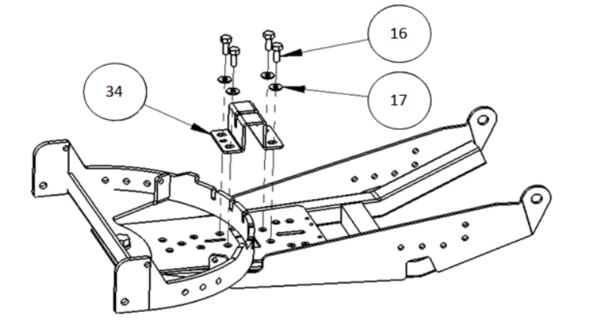

Pivot Lever Support Kit
• #34 - Pivot Lever Support Bracket (qty 1)
• #16 - 3/8″ Hex Head Bolt (qty 4)
• #17 - 3/8″ Flat Washer (qty 4)
