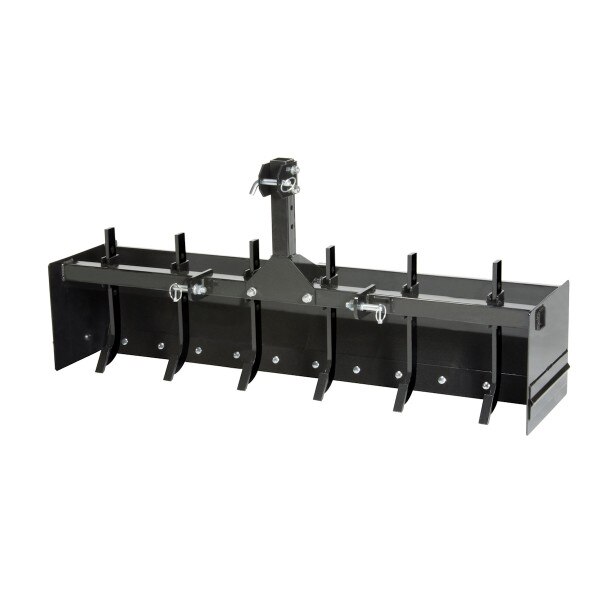

IMPACT CAT-0 Box Scraper

The Impact Implements CAT-0 Box Scraper is designed for rugged use by landscapers, farmers, and homeowners. Box scrapers are great for grading, landscaping, land leveling, back filling, and many other projects. Height adjustable, heavy duty shanks with replaceable steel cutting edges break up hard ground. Apply down pressure for customized cutting and leveling capabilities. Attaches to CAT-0 Systems with the included pins.

Uses:

• Garden Tractor
• Lawn Tractor
• Any vehicle with a CAT-0 Hitch / 3 Point Attachment System installed

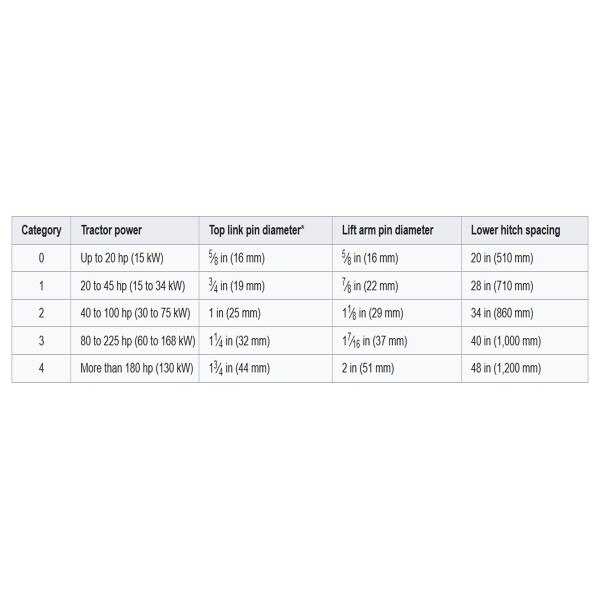

• NOTE: CAT-0 is defined as Tractor Power up to 20 hp (15 kW)

Specs:

• Blade: 55″ (W) x 12″ (H) x 12″ (D)
• Tines: .5″ (W) x 16″ H x 1.5″ (D)
• Tine Cutting Edge: 1″ (W) x 3″ (H) x .5″ (D)
• Box ends: 12″ (W) x 12″ (D)
• 8-gauge steel 3 point frame
• 10-gauge steel main frame tube
• 10-gauge steel formed back blade
• Weight: 130 lbs

Features:

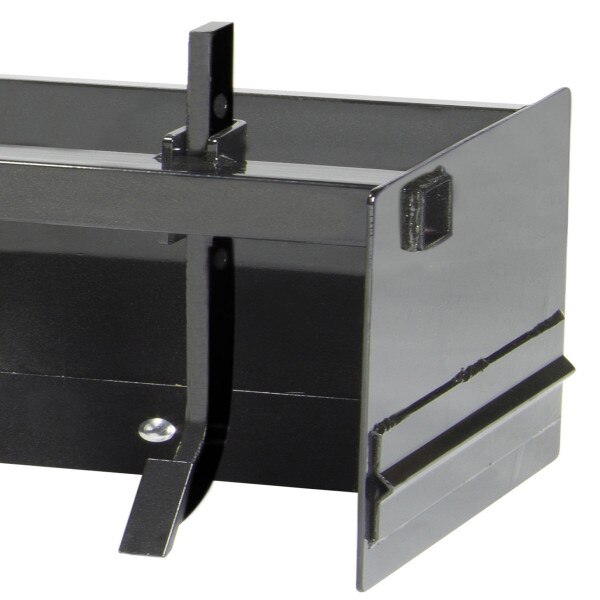

• Six (6), replaceable and height adjustable cutting (ripper) edge tines
• Five (5) inches of adjustability on the cutting tines
• Reversible and replaceable blade wear bar

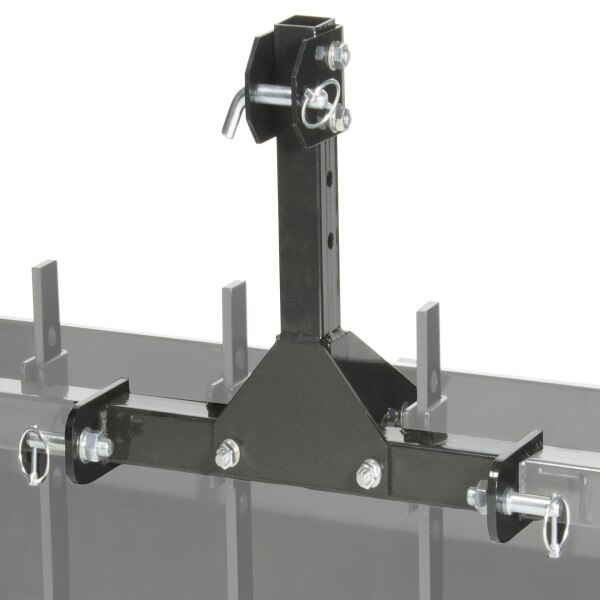

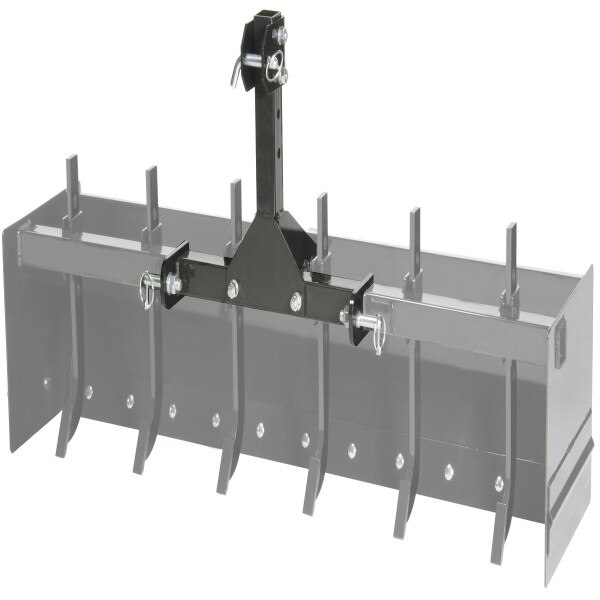

• Integrated 3 Point CAT-0 quick mount
• Requires a CAT-0 Hitch / Three-Point Hitch (not included) already installed
• Assembly Required
