EVOLUTION UTV Windshields - Ranger

(0) No Reviews yet
SKU: CFG_Windshield_Ranger




Protection from flying debris while driving the trails with EVOLUTION Windshields! Every windshield is strong polycarbonate with a bottom seal contoured to the machine's hood. Clear, 1/4" polycarbonate is unbreakable and perfect for keeping out the elements for every rider.

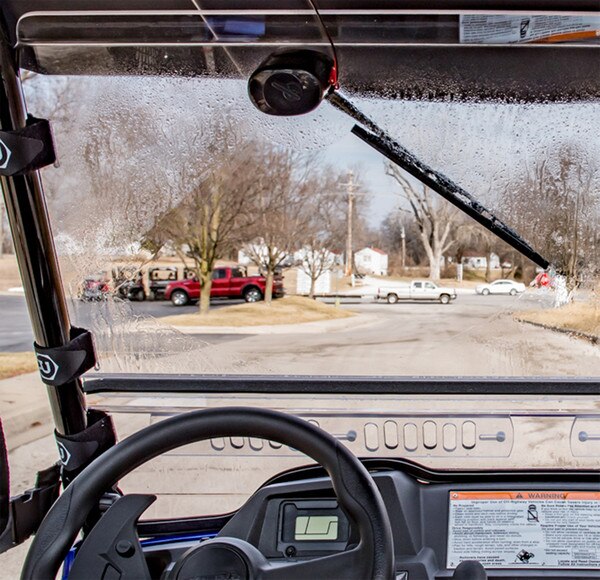

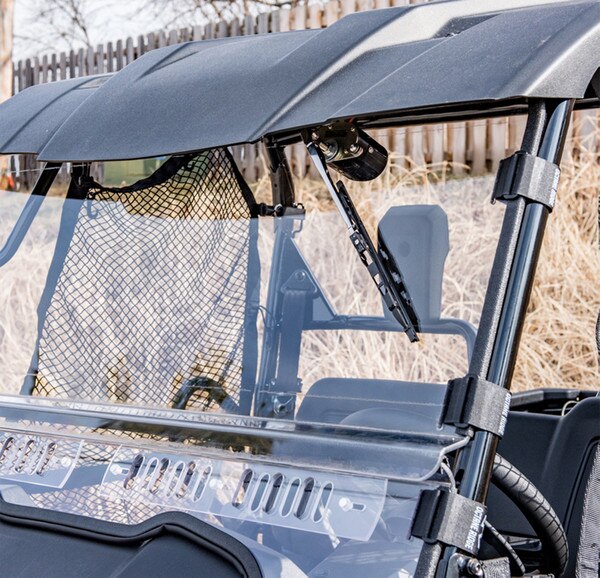

The EVOLUTION Electric UTV Wiper System includes a 12-Volt, self-contained wiper motor featuring 90-degrees of wiper action that automatically comes to rest at the clockwise position when viewed from the driver's seat. Dirty and wet windshields are cleared with just the flip of the integrated ON/OFF switch. Designed specifically for hard-coated windshields, the hands-free wiper offers the freedom to choose your desired mounting position and the 12 inch wiper blade covers the most area possible. Just like any automobile wiper system, the 12-inch wiper blade is replaceable for your convenience. Installation is simple and all hardware and instructions are included.


Windshield Specs:
Type : Front, Full
Material : Polycarbonate
Light Transmission : 93%
Thickness : 1/4"
Windshield Dimensions : 52" (L) x 31.5" (H) x .25" (W)
Windshield Weight : 27.7 lbs


Kit Contents - Windshield Only:
qty 1 : Windshield
qty 4 : ABS Velcro Clamps


Kit Contents - Windshield and Wiper:
qty 1 : Windshield
qty 4 : ABS Velcro Clamps
qty 1 : Wiper Blade
qty 1 : Electric Motor
qty 1 : Wiper Arm
qty 1 : Fused Wire Harness (12 foot)
qty 1 : Installation hardware and instructions


Fitment:

Midsize 500/570/ETX/EV - Windshield
2017-2019 Ranger Midsize 500
2015-2019 Ranger Midsize 570
2015-2019 Ranger Midsize 570 Crew
2015-2019 Ranger Midsize ETX
2015-2019 Ranger Midsize EV

Full Size 570/900/1000 - Windshield
2013-2019 Ranger XP 900
2014-2019 Ranger XP 900 Crew
2015-2016 Ranger XP 570 (PRO-FIT Cab)
2015-2016 Ranger XP 570 Crew (PRO-FIT Cab)
2017-2019 Ranger XP 1000
2017-2019 Ranger XP 1000 Crew
2015-2018 Ranger 1000 Diesel
2015-2018 Ranger 1000 Diesel Crew

Midsize 500/570/ETX/EV - Windshield & Wiper
2017-2019 Ranger Midsize 500
2015-2019 Ranger Midsize 570
2015-2019 Ranger Midsize 570 Crew
2015-2019 Ranger Midsize ETX
2015-2019 Ranger Midsize EV

Full Size 570/900/1000 - Windshield & Wiper
2013-2019 Ranger XP 900
2014-2019 Ranger XP 900 Crew
2015-2016 Ranger XP 570 (PRO-FIT Cab)
2015-2016 Ranger XP 570 Crew (PRO-FIT Cab)
2017-2019 Ranger XP 1000
2017-2019 Ranger XP 1000 Crew
2015-2018 Ranger 1000 Diesel
2015-2018 Ranger 1000 Diesel Crew


Windshield Features:
Scratch and corrosion resistant
Shock and stretch resistant
Premium, optical grade windshield provides maximum visibility
Thick rubber strip at bottom of windshield provides a buffer and tight connection
High strength ABS clamps ensure seamless, non-scratching connection
Extra wide velcro hold windshields in place and make for easy install

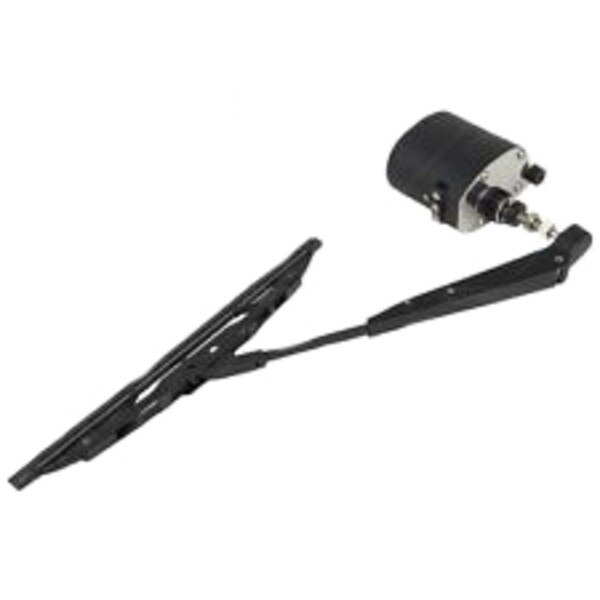

Wiper Features:
Integrated ON/OFF switch on back of motor
12V self-contained wiper motor
12" replaceable wiper blade

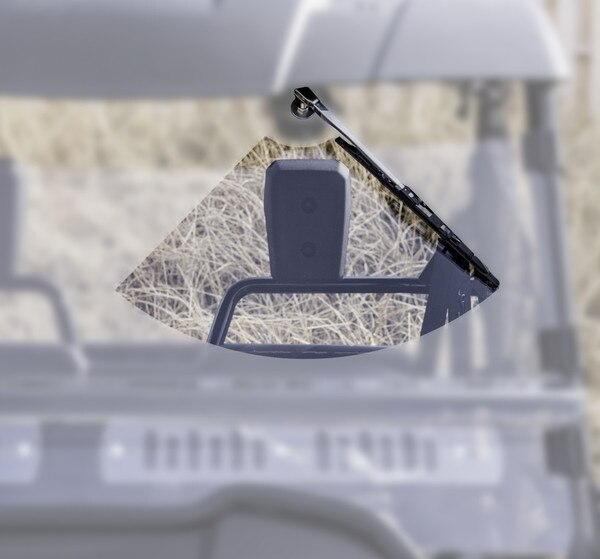

90-degree wiper action with self-parking feature at the clockwise position (from the driver's perspective)
