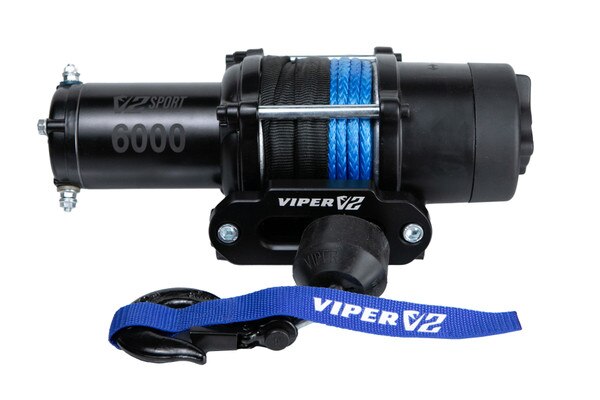

Viper ATV/UTV Winch - V2 Sport

Viper V2 Standard Spool ATV/ UTV Winch - a NEW GENERATION OF VIPER!

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient. All V2s are hand-wound with your color choice of AmSteel®-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits.


Features:

• • IP67 Waterproof Rating
• • Wireless Remote System with unique frequency
• • Planetary metal gear train and permanent magnet motor
• • Automatic brake

Kit Contents:

• • 40' x ¼" diameter AmSteel®-Blue Synthetic Rope
• • Aluminum Hawse Fairlead
• • Wireless Remote Switch
• • Contactor & Wiring
• • Black Clevis Hook
• • Rocker Handlebar Switch
• • Rubber Line Stopper (two-piece)
• • Hand Saver Strap
• • Installation Hardware and Instructions

Specs

• • Cable - AmSteel®-Blue Synthetic, 5,400lb max load rating
• • Motor - 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio - 3-Stage planetary/136:1
• • Brake - Automatic, 100% load holding
• • Clutch - Sliding Ring Gear
• • Wiring - 6 gauge (English)

• • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
• • Dimensions:
  • •15.125 (L) x 4.75 (H) x 4.75 (D) inches
  • •20 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV/ UTV / SxS. We have many custom mount plates designed to bolt on to your ATV/ UTV / SxS.

Optional Extended Service Plan

VIPER Elite winches are eligible for a two (2) year, extended service plan, where all maintenance and repairs are covered no questions asked. Simply send in your winch and we will take care of it from there! Plan details include:

• All repair and service up to the full replacement value of the winch - no questions asked
• Coverage is for every part of the winch - no questions asked
• Coverage is for every part of the winch, including cables and fairleads
• Receive a 25% off voucher at the end of two (2) years for the use on a new winch or any MotoAlliance product

Optional Extended Wiring

Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.

Please Note: both ends of cables are eyelets
