Viper UTV Winch - V2 Wide Spool

(0) No Reviews yet
SKU: CFG_Winch_VT_Wide




Click the question mark ? by the drop down list to see complete fitment.

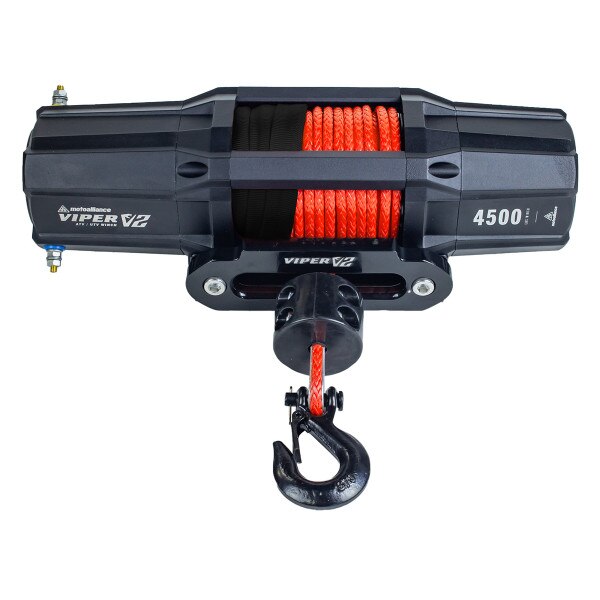

Viper V2 Wide Spool UTV Winch - a NEW GENERATION OF VIPER!

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out clevis hook to the “stealth” wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits.


Fitment Limitations:
  • The VIPER V2 will not fit Polaris RZRs, with the exception of Pro XP models. If installing on a RZR Pro XP (with mount plate MA11941), you may need to clock your winch or trim surrounding plastic to ensure fitment.
  • The VIPER V2 Wide Spool will not fit the Kawasaki KRX.





  •
  •
  • Features:
    • • IP67 Waterproof Rating
    • • Wireless Remote System with unique frequency
    • • Flush Mount Dash Switch
    • • Planetary metal gear train and permanent magnet motor
    • • Automatic brake
    • • Limited Lifetime Warranty (winch) / Rope (1 year)

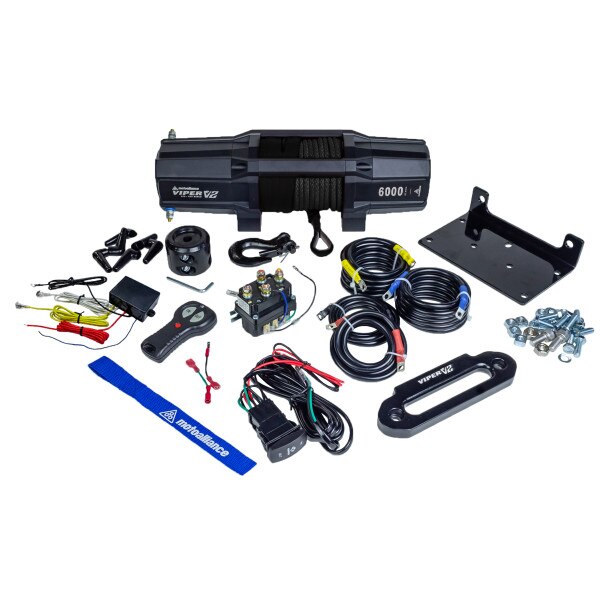

    Kit Contents:
    • • 60′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (1 year warranty)

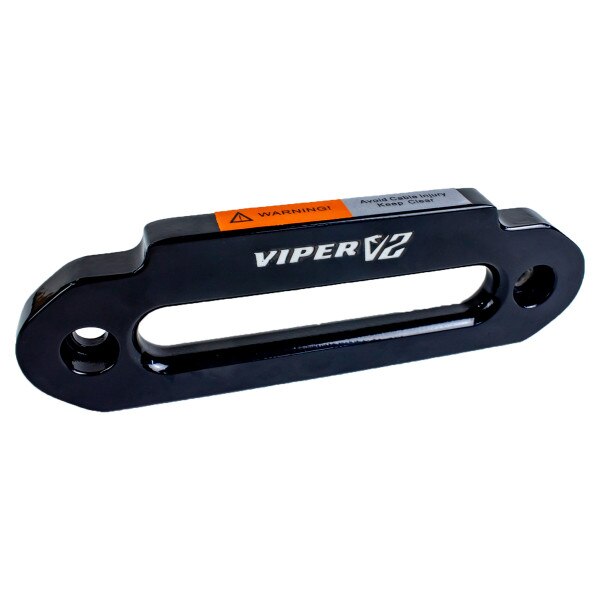

    • • Aluminum Hawse Fairlead

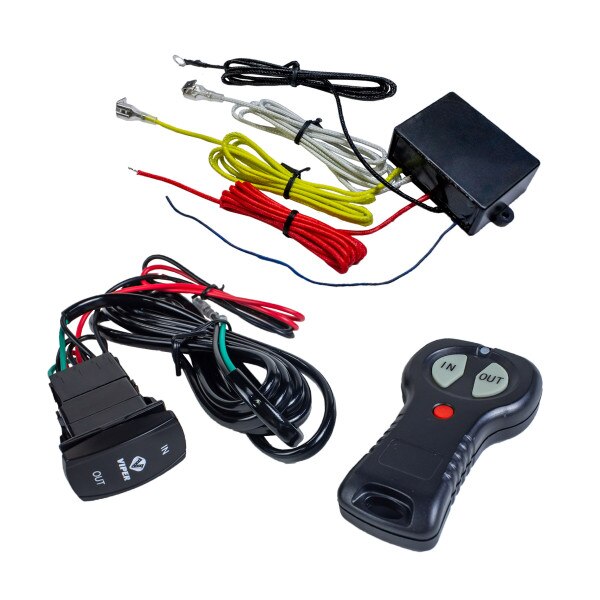

    • • Wireless Remote Switch
    • • Flush Mount Dash Switch
    • • Contactor & Wiring
    • • Black Clevis Hook

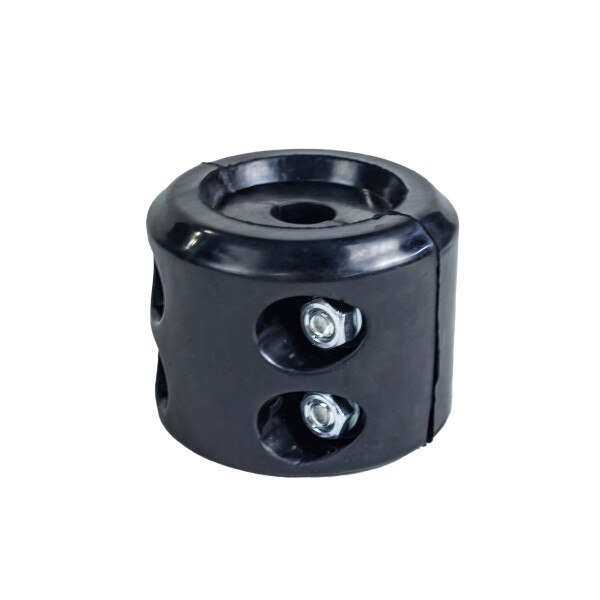

    • • Rubber Line Stopper (two-piece)
    • • Hand Saver Strap
    • • Installation Hardware and Instructions

    Specs
    • • Cable - AmSteel®-Blue Synthetic, 8,600lb max load rating
    • • Motor - 12V DC, Sealed permanent magnet
    • • Gearing / Gear Ratio - 3-Stage planetary/192:1
    • • Brake - Automatic, 100% load holding
    • • Clutch - Sliding Ring Gear
    • • Wiring - 6 gauge (English)
    • • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
    • • Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
    • • Dimensions:
      • •16.25 (L) x 4.75 (H) x 4.75 (D) inches
      • •20.8 lbs


    Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.
