Viper ATV/UTV Winch - V2

(0) No Reviews yet
SKU: CFG_Winch_VT




Click the question mark ? by the drop down list to see complete fitment.

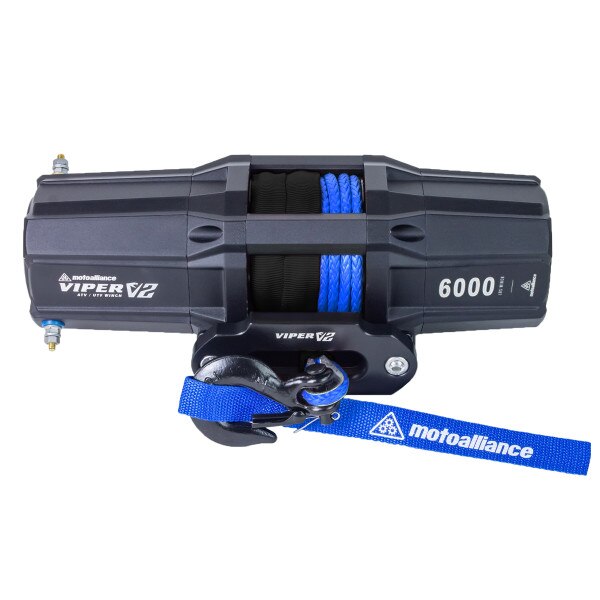

Viper V2 Standard Spool ATV/UTV Winch - a NEW GENERATION OF VIPER!

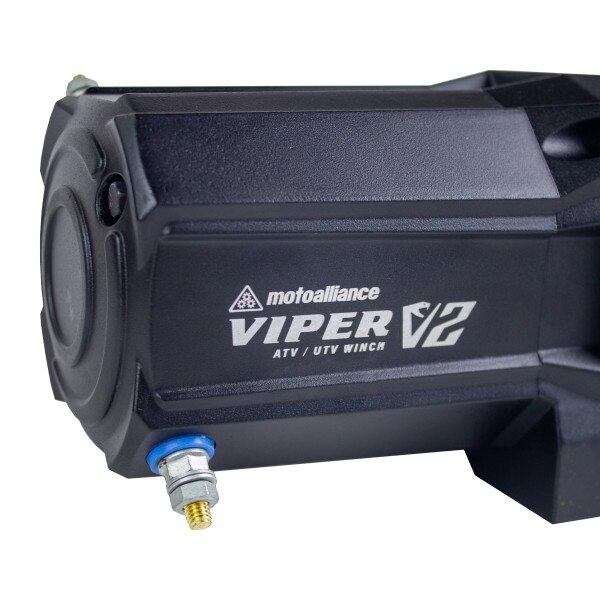

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out clevis hook to the “stealth” wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits.


Fitment Limitations:

  • The VIPER V2 will not fit Polaris RZRs, with the exception of Pro XP models. If installing on a RZR Pro XP (with mount plate MA11941), you may need to clock your winch or trim surrounding plastic to ensure fitment.

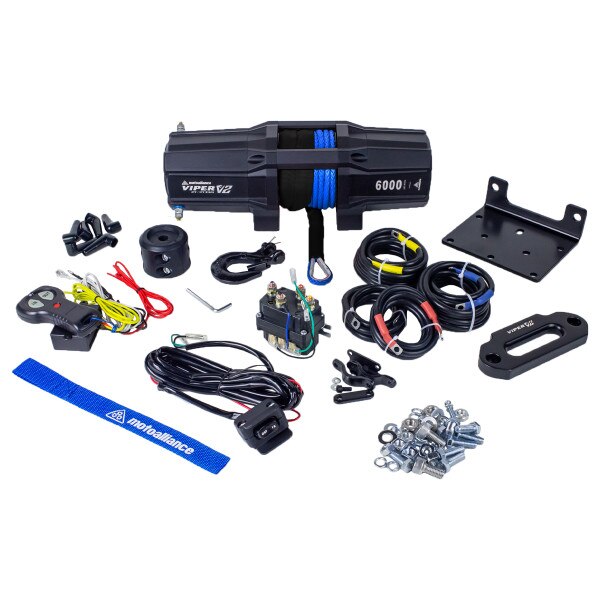

    Features:
    • • IP67 Waterproof Rating
    • • Wireless Remote System with unique frequency
    • • Rocker Handlebar Switch
    • • Planetary metal gear train and permanent magnet motor
    • • Automatic brake
    • • 40′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (6 month warranty)

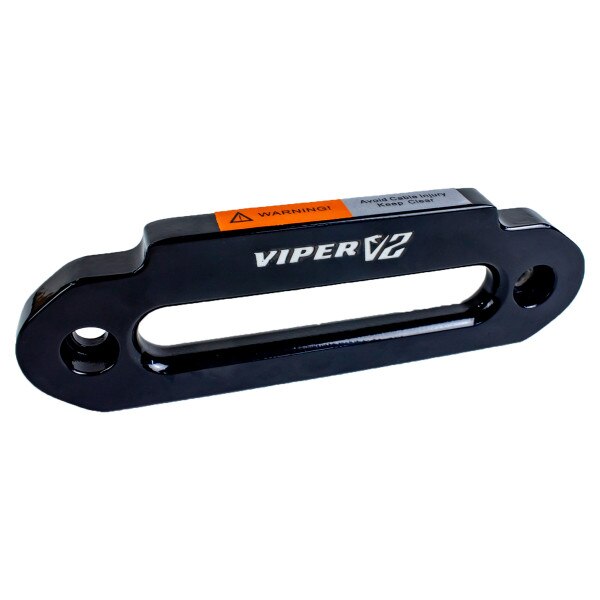

    • • Aluminum Hawse Fairlead

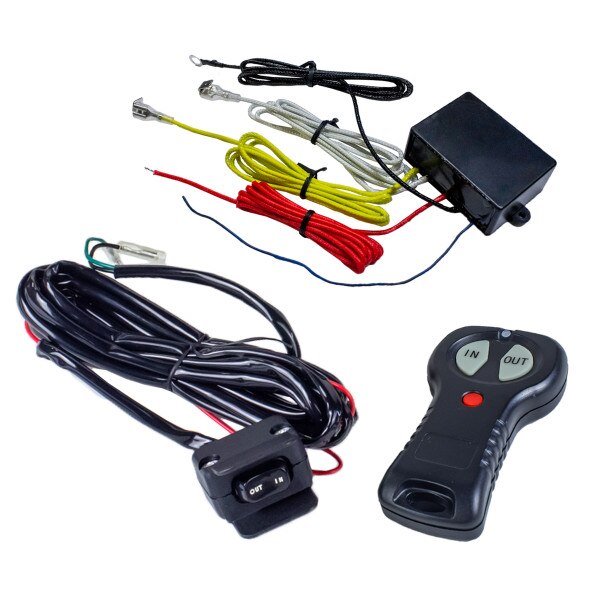

    • • Wireless Remote Switch
    • • Rocker Handlebar Switch (LED Dash Switch Upgrade Available)

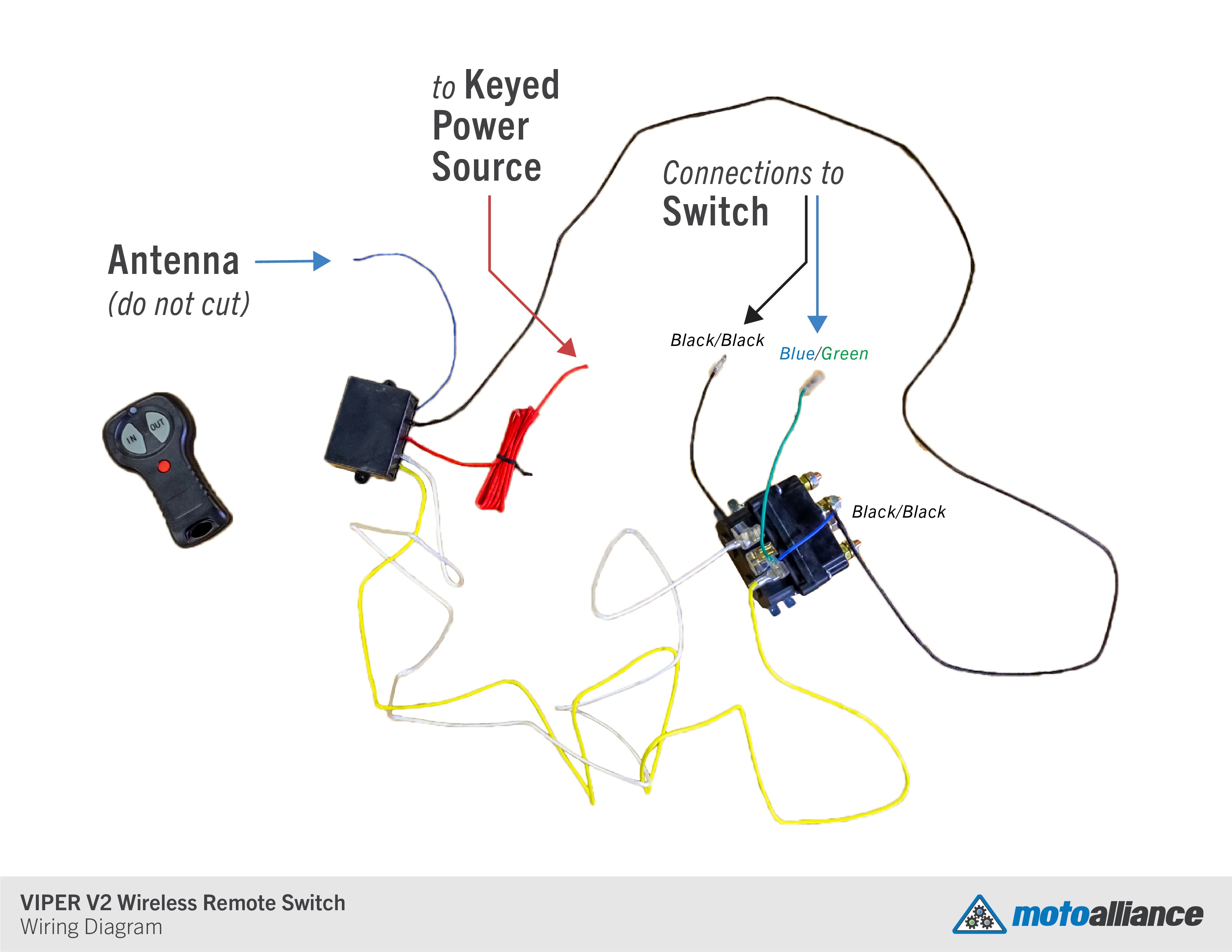

    • • Contactor & Wiring

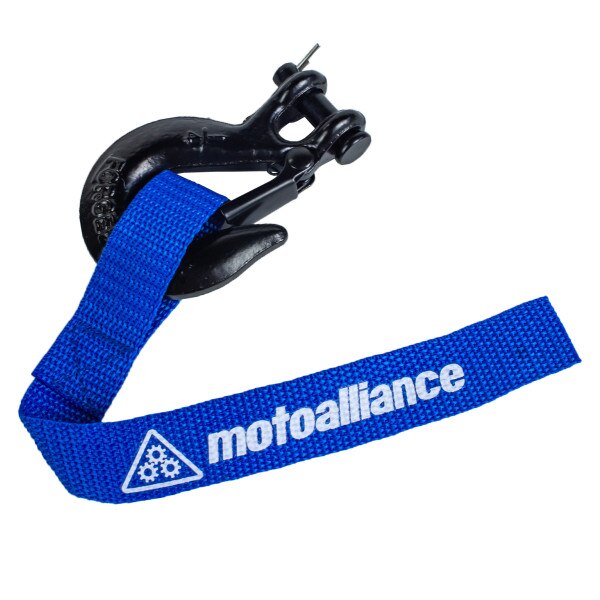

    • • Black Clevis Hook

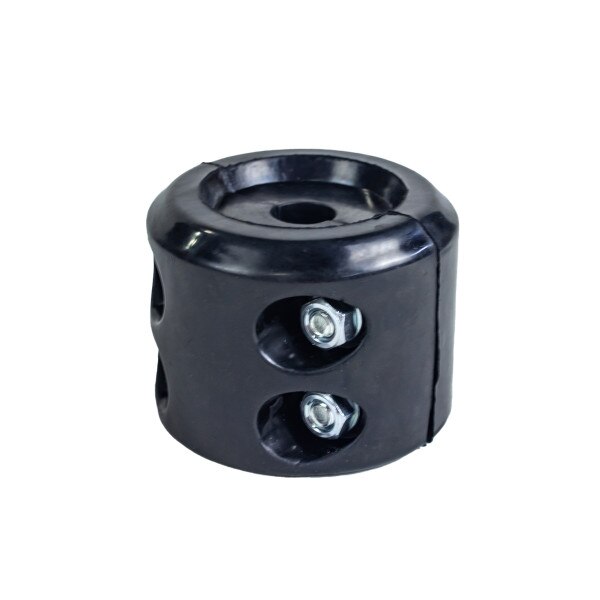

    • • Rubber Line Stopper (two-piece)
    • • Hand Saver Strap
    • • Installation Hardware and Instructions
    • • Cable - AmSteel®-Blue Synthetic, 5,400lb max load rating
    • • Motor - 12V DC, Sealed permanent magnet
    • • Gearing / Gear Ratio - 3-Stage planetary/136:1
    • • Brake - Automatic, 100% load holding
    • • Clutch - Sliding Ring Gear
    • • Wiring - 6 gauge (English)
    • • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
    • • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
    • Synthetic rope screw size - M6
    • • Dimensions:
      • •15.125 (L) x 4.75 (H) x 4.75 (D) inches
      • •20 lbs
