Viper UTV Winch - V3 Standard Spool

READ all details and verify your machine is compatible before completing a size selection.

Check out the sleek and rugged Viper V3 winch -- the NEWEST in the family of trusted VIPER Winches by Motoalliance

The VIPER V3 boasts a modern cutting-edge look that is a great match for next-gen machines, and the tight footprint with recessed terminals allows installation in even the tightest of spaces.

The V3 sealed with an IP67 waterproof rating, constructed with durable corrosion-resistant aluminum, and made with military-grade raw materials for exceptional durability and performance. Every V3 comes with a wireless remote switch to make winching operations safer and more convenient.

The V3 has also been designed to impress in every component -- from the high contrast decals, the matte finish on the winch body and laser-etched fairlead, to the multiple synthetic rope colors to match your machine.

The VIPER V3 is a great choice for discerning riders who love to push their machines to the limits while having a rugged, great-looking winch to rescue them out of sticky situations.


Features:

• • IP67 Waterproof Rating
• • Wireless Remote System with unique frequency
• • Planetary metal gear train and permanent magnet motor
• • Automatic brake
• • Limited One Year Warranty (6 Month Warranty on Rope)

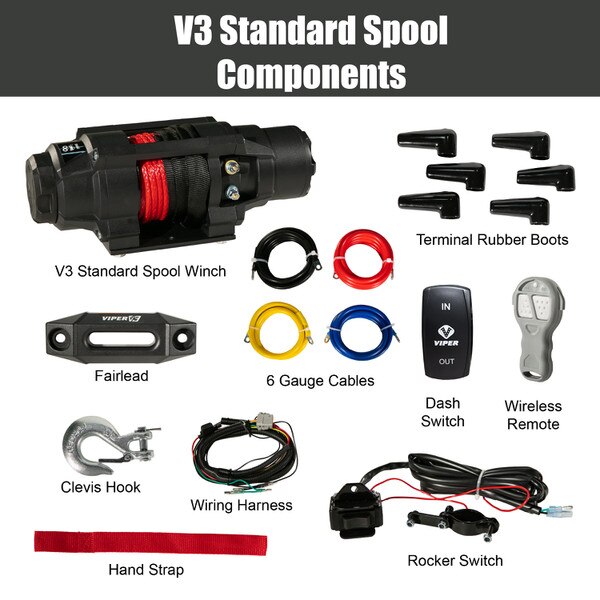

Kit Contents:

• • 40' x ¼" diameter Synthetic Cable

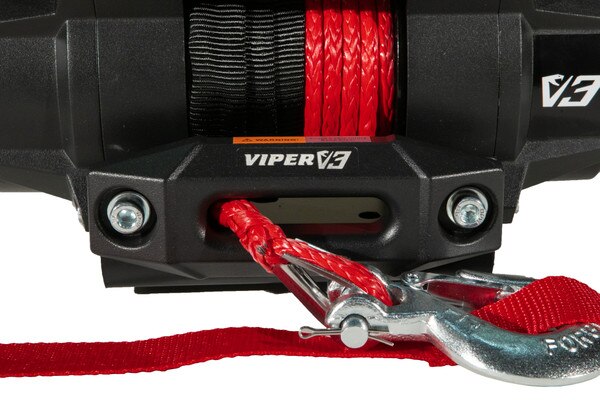

• • Aluminum Hawse Fairlead
• • Wireless Remote Switch
• • Contactor & Wiring

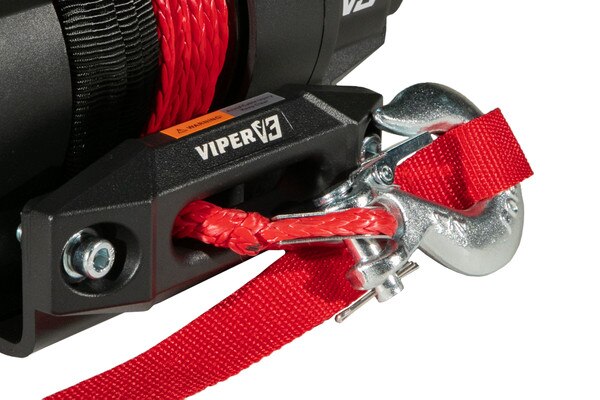

• • Clevis Hook
• • Rocker Handlebar Switch
• • Dash Switch
• • Hand Saver Strap
• • Installation Hardware and Instructions

Specs - 4500 and 6000 lb. versions

• • Motor - 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio - 3-Stage planetary
• • Brake - Automatic, 100% load holding
• • Clutch - Sliding Ring Gear
• • Wiring - 6 gauge (English)
• • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)
• • Dimensions:
  • •13.3 (L) x 4.75 (H) x 4.6 (D) inches
  • •17 lbs

Specs - 9000 lb. version

NOTE: The 9000lb. winch uses M10 Hardware rather than M8 Hardware. Verify your winch mount is compatible with the larger hardware and the spacing on your machine can accommodate the larger winch body before purchasing.

• • Motor - 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio - 3-Stage planetary
• • Brake - Automatic, 100% load holding
• • Clutch - Sliding Ring Gear
• • Wiring - 6 gauge (English)
• • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• • Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
• • Dimensions:
  • •17 (L) x 6.5 (H) x 6 (D) inches
  • •35 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV/ UTV / SxS. We have many custom mount plates designed to bolt on to your ATV/ UTV / SxS.
