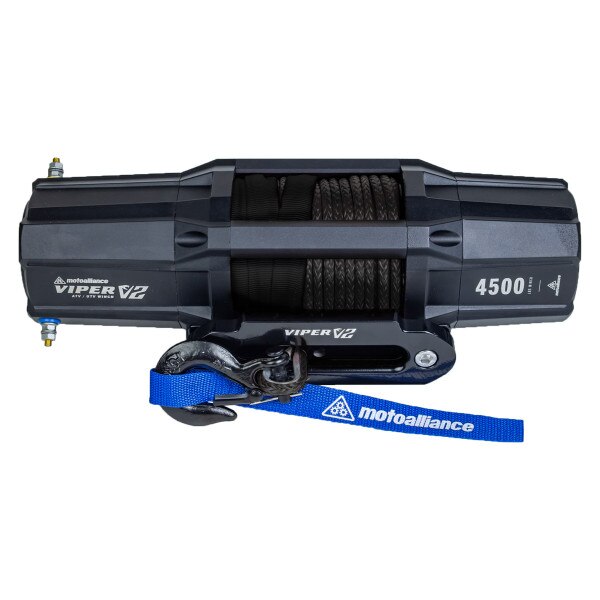

Scratch and Dent V2 4500 Wide Spool UTV Winch

Scratch and Dent

Viper V2 Wide Spool UTV Winch



Features:

• • IP67 Waterproof Rating
• • Wireless Remote System with unique frequency
• • Flush Mount Dash Switch
• • Planetary metal gear train and permanent magnet motor
• • Automatic brake

Kit Contents:

• • Aluminum Hawse Fairlead
• • Wireless Remote Switch
• • Flush Mount Dash Switch
• • Contactor & Wiring
• • Black Clevis Hook
• • Rubber Line Stopper (two-piece)
• • Hand Saver Strap
• • Installation Hardware and Instructions

Specs

• • Motor - 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio - 3-Stage planetary/136:1
• • Brake - Automatic, 100% load holding
• • Clutch - Sliding Ring Gear
• • Wiring - 6 gauge (English)

• • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• • Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
• • Dimensions:
  • •16.25 (L) x 4.75 (H) x 4.75 (D) inches
  • •20.8 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.
